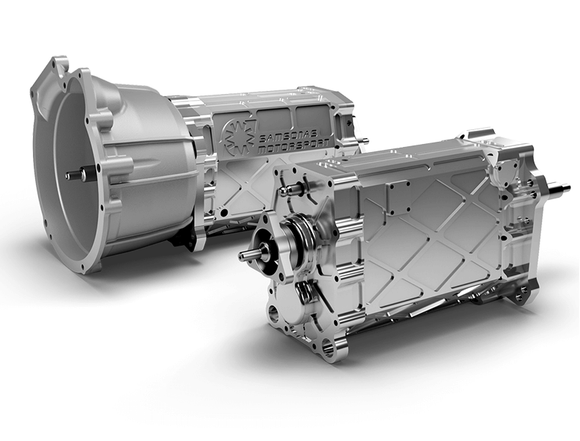

Samsonas - Universal H Pattern Gearbox - RWD

Samsonas Motorsports Gearbox

Samsonas is a high quality European rally brand, producing made in house to order gearboxes from their factory in Lithuania. Their transmissions have undergone extensive real-world testing on the European rally circuit, and the VEX Performance Rally team just recently installed a Samsonas 6-speed sequential transmission in our 04' STi Rally car.

Samsonas universal RWD sequential and H-pattern transmissions are highly customizable to be compatible with most common RWD applications. Choose from a wide range of bellhouse adapters to suit your engine, plus multiple rear output flange options to match various driveshafts and differentials. Each can be configured to function with the size and spline count of your existing clutch. To top it off, numerous gear ratio packages let teams fine-tune the transmission to their exact driving needs.

Custom fabrication and installation is required for the transmission mount and to fit your exact vehicle.

VEX Performance traveled to Lithuania specifically to meet with the team from Samsonas and to inspect the manufacturing facility prior to selling any of their products. Our Rally team also just recently installed a Samsonas 6-speed sequential transmission in our 04’ STi Rally car. Check this out if you're interested in our experience there, or contact us regarding questions and quotes.

Features

• 4, 5 or 6 forward gears (+ reverse) full sequential gearbox
• Transfer or reduction gear
• Torque rating up to 1400 Nm, depending on selected options
• Special steel x300 clutch shaft
• Quick change drop gear
• Straight cut gears for minimum rolling resistance
• Super finished, shot peened gears and internals
• 5 engagement dogs for fastest gear change
• Dry weight 38kg
• Several customizations to fit most RWD models:
  • 400+ different ratio options
  • 200+ different clutch-shaft options
  • Transaxle option for Chevrolet Corvette C5, C6, C7
  • 4WD option for Nissan Skyline GT-R R32, R33, R34
  • 15 options of rear flanges to fit all BMW, Toyota, Nissan, Mazda and GM models
  • Over 70 options of engine bellhouse fittings: Audi/VW, BMW, MB, Ford, Mazda, Honda, Subaru, Scion, GM, Volvo and more
• Suitable for:
  • Drift
  • Drag
  • Rally
  • Time Attack
  • Rally Cross
  • Circuit
  • Hill Climb
  • Street (very aggressive)

How To Order and Pricing:

Samsonas Gearboxes are custom ordered and custom configured depending on exactly what you are trying to achieve. Typical questions would be:

Do you want a Sequential or H-Pattern Gearbox?

Depends on usage and class, but some classes require a H-Pattern manually shifted gearbox.  Sequential is typically the best option if your class and budget allows, less mistakes can be made, especially with a good calibration.

H-Pattern 4, 5 or 6 Speed Gearbox

• 4-Speed Starting at 5400€ (~$6040 USD, $9115 CAD)
• 5-Speed Starting at 5800€ (~$6485 USD, $9800 CAD)
• 6-Speed Starting at 6200€ (~$6930 USD, $10465 CAD)

Sequential 4, 5 or 6 Speed Gearbox

• 4-Speed Starting at 7700€  (~$8610 USD, $13000 CAD)
• 5-Speed Starting at 8600€ (~$9615 USD, $14515 CAD)
• 6-Speed Starting at 9600€ (~$10735 USD, $16203 CAD)

Which ratios are you looking for (including transfer gear / quick change drop gear)?

All Ratio Options typically same or very similar cost.

What engine is this going on?

Bell housing adapters starting at 360€ - Examples below

• BMW S50/S52/S54/S5
• 5S14
• S65
• N54/N55
• T56 for LS
• Other bellhousing options on special request

What input shaft do you need?

We have many options for popular clutches and splines but this needs to be specified. Starting at 290€

What output flange do you need?

The output flange can be configured to work with most popular styles of driveshafts.  Starting at 360€

When do you need it?

Typically these gearboxes are made-to-order and a typical lead time would be 4-12 weeks.  Complete gearboxes estimated at approximately 650€ imported to VEX in Calgary, AB.

Extra quantities of all components can be purchased for spares

Optional Accessories:

• x1 ACAL RSS Gear Position Sensor (highly recommended for closed-loop shift strategies) from 150€
• Samsonas Sequential Gear Shifter (High quality Billet shifter w/ reverse lockout) 650€
• Samsonas H-Pattern Shifter 500€
• Variohm OMZ160 Gear Number Display 180€
• ECU Master Digital Gear Indicator 300€
• Gear Shift Load Cell (highly recommended for flat-foot, closed loop shifting) 625€
• Oil Temp Sensor 110€
• Clutch Bearing Adapter for Tilton 1000-Series (Saab 9000 Type) 140€
• Tilton 1000-Series Hydraulic Release Bearing 390€
• Spare Components:
  • Gear Set from 410€
  • Transfer or Reduction Gear Set from 430€
  • Dog Ring from 220€

Gear Ratios

Transfer or Reduction Gear Ratios:

• 0.700
• 0.8400
• 0.870
• 0.920
• 0.962
• 1.000
• 1.040
• 1.087
• 1.143
• 1.250
• 1.333
• 1.428
• 1.526
