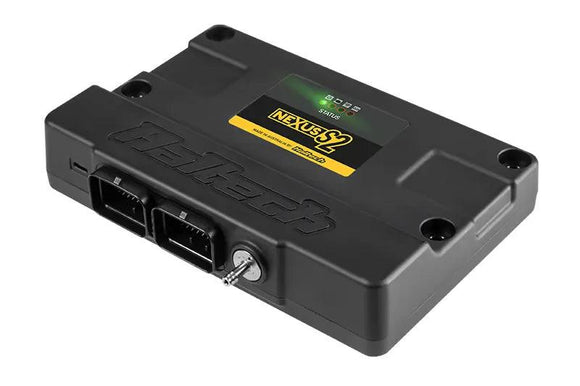

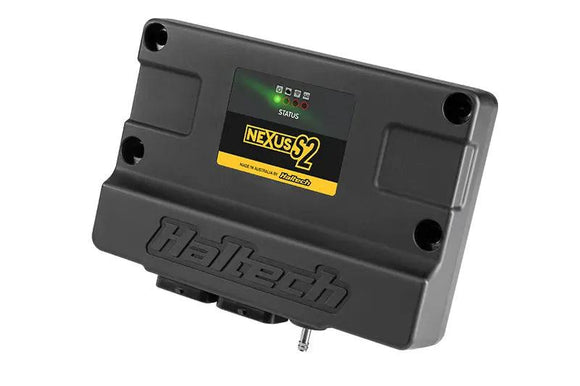

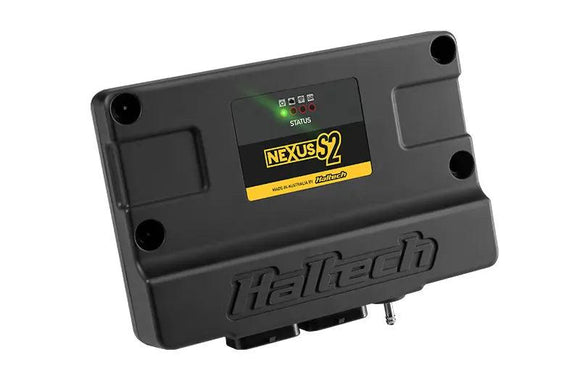

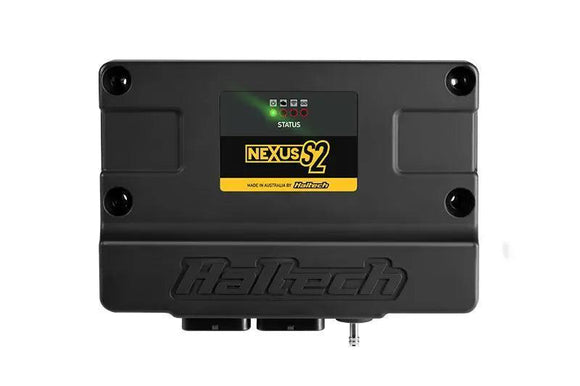

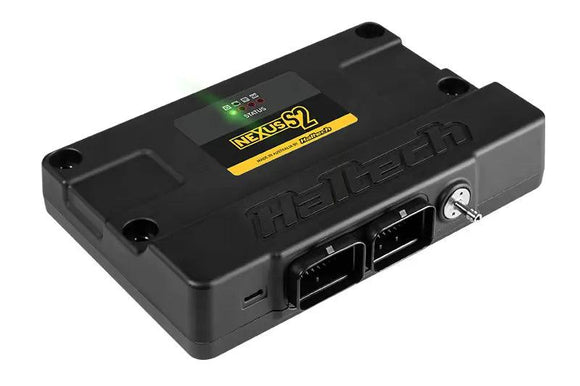

NEXUS S2 ECU

Key Features

Suits: Engines with up to 4 cylinders or up to 2 rotors. Racing applications where advanced race features and data logging is required.

Includes: Nexus S2 ECU, 4 x mounting bolts, USB-C Cable, USB-C dust cap, Quick Start Guide, Wiring Diagram.

Details

Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.

• 4 x peak/hold injector drivers (can be used as low side drive outputs)

• 4 x low current ignition outputs (can be used as low side drive outputs)

• 6 x low side drive outputs, PWM capable (DPOs)

• 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle

• 1 x ECR output

• 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup

• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters

• 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs

• 1 x on-board wideband controller, supporting NTK and LSU4.9

• 1 x on-board 4 bar MAP sensor

• 2 x CAN ports with switchable termination
